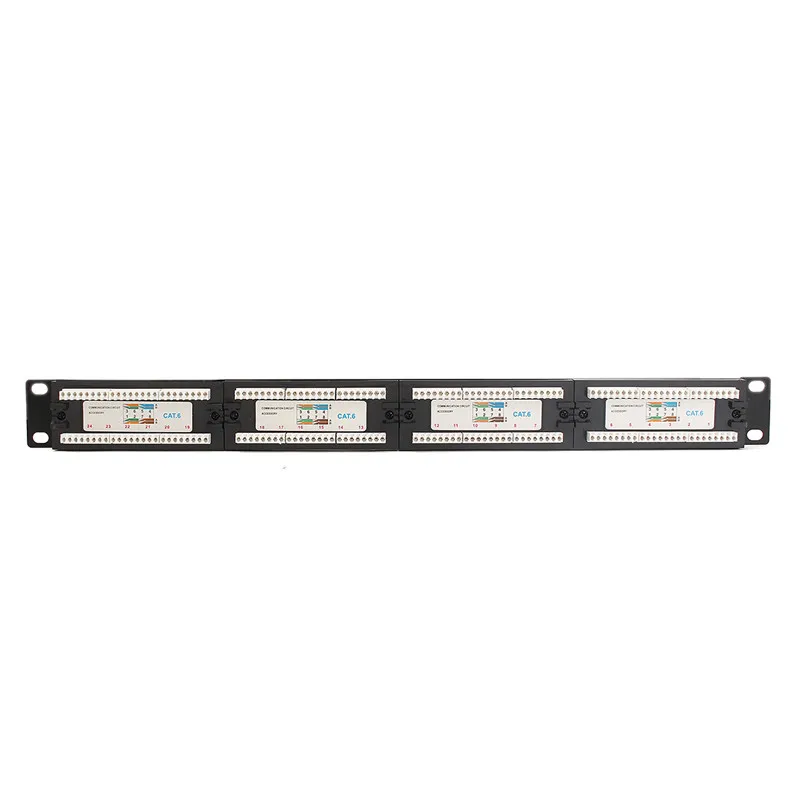

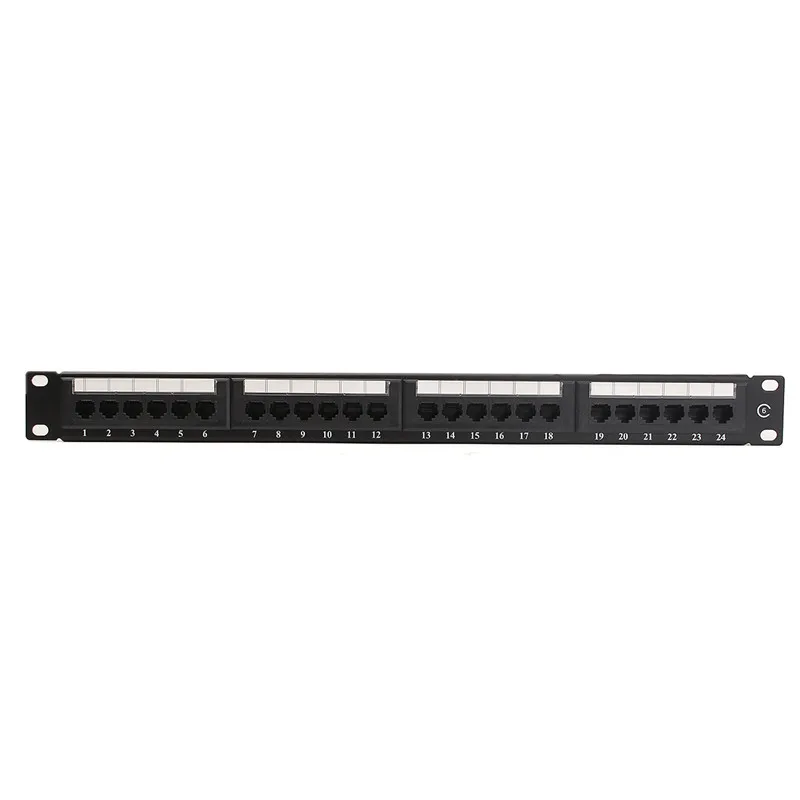

24 port Excel right angled patch panel represents a cost effective category 6 solution with integral rear cable management. Occupying 1U position and present LSA compatible termination IDCs that are horizontal to the panel facia to allow quick and easy cable installation.
Built in rear cable management
Cage nuts included
Supplied with cable ties and instruction sheet
Uses Excel Punchdown Tool – BT Ref 2A
Number of Port
PC , Accept 22-24 AWG Solid Wire.
FR4 1.6mm(0.04") thickness, 2 layers
Applicable Cable type
Cold rolled steel
AWG 22-24 C6 cable wires are recommended for this instalation.

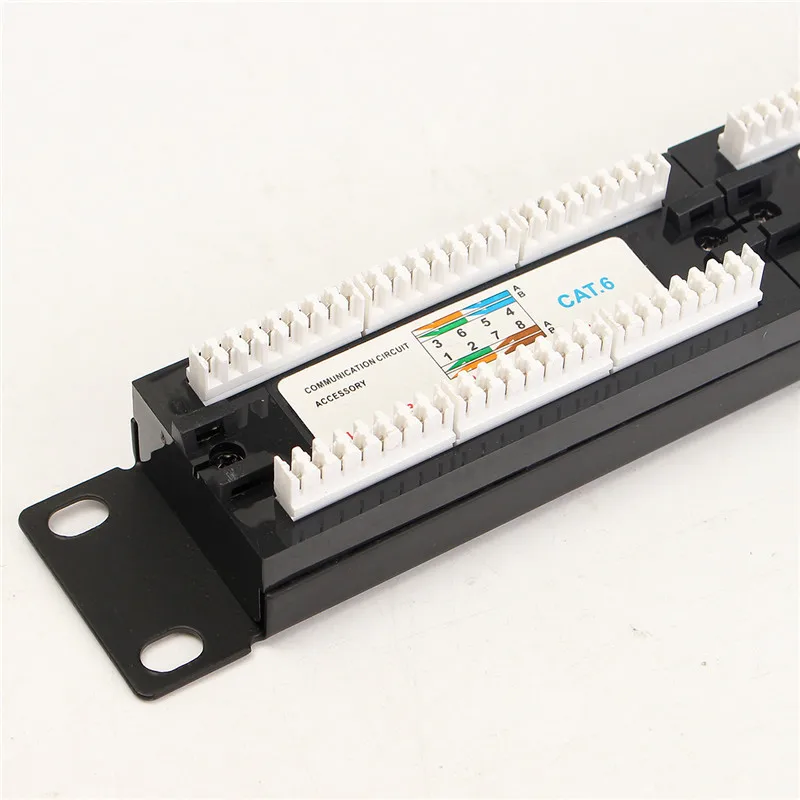

Verifying the wiring follows the paster color code of the panel back cover.
Proper termination tools should be used ( e.g. 110 or Krone Universal Wire Insertion Tool).
Be aware of the insertion direction for wires.
When impacting the wire you must identify with standard TIA/EIA-568A/B.
Or 568B C6 permanent link conform to ANS/EIA/TIA-568.2-1.
Shenzhen Glory Technology Co., Ltd. Specializes in manufacturing cables including DVI cable, HDMI cable, network cable, USB cable and VGA cable. We are a modern corporation integrating production and sale.
We put a high value on stuff training and equipment updating, therefore, a mature and integrated production line as well as a potential sales team has been built so far.
The Shenzhen Glory Technology Co., Ltd. is famous for its high quality products, its good service and competitive pricing, all of which have led to our business expanding throughout the world. Currently, we have our own manufacturing plants located in Jieyang City, Guangdong Province. In addition, we also have representative offices and service center in Shenzhen.
By Sea : If you have freight forwarder, they can handle shipping for you. If you don't have it , we can provide the cheapest shipping cost to you.Or send our freight forwarder informations to you contact directly. By Air : You can try to contact with DHL, Fedex, UPS express etc. after got weight and CBM from us. But it's more cheaper by China express agent, you can contact with our sales to get the cheapest freight cost.
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? A2: Our factory is located in jieyang city, and our company are located in Shenzhen city.
Q3. Could I have a visit to your factory?
A3: Welcome to visit. If you go to our factory, you will get the warmest reception. Outside of business, we can be friends.
Q4: May I buy samples from you? A4: Yes! You are welcome to place sample order to test our superior quality and services.
Q5: Can you put my brand name (logo) on these products? A5: Yes! Cable Marking/Printing: It can be marking your brand or any printing that you want, except for international famous brand.
